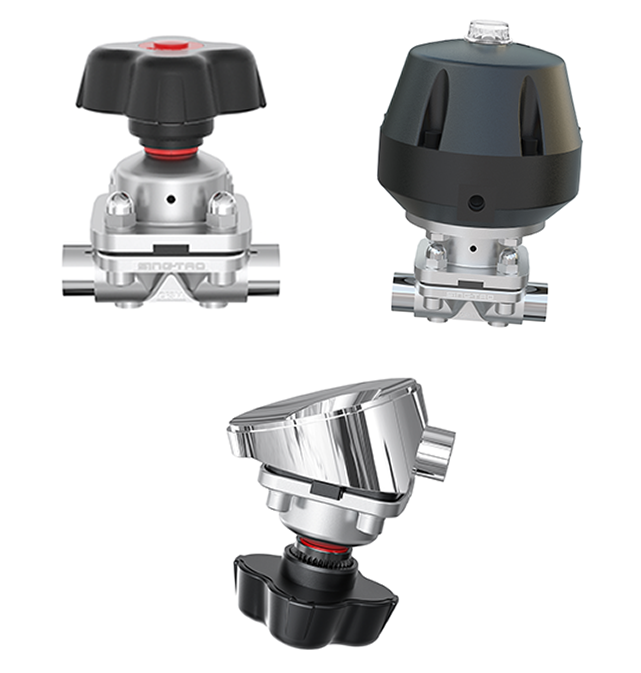

Diaphragm Valve

The SingTao diaphragm valve is used to close, transfer or regulate the fluid flow of sanitary, high-purity and sterile pipelines. With compact structure, light weight and easy configuration, the valve can achieve manual or pneumatic operation, and meet almost any process requirements, including conditions with microbial control requirements such as food, dairy and biological pharmacy.

Features

  • The sterile diaphragm technology ensures high quality and pollution-free products

  • Compact structure and customizable multiple valve

  • Minimum dead area and maximum drainage and cleanability

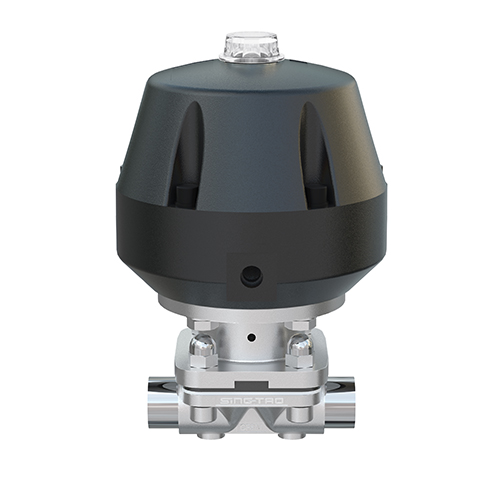

Pneumatic Diaphragm-Valve

Specification:

  • Dimension range: DN10 - DN100（3/8" - 4"）

  • Working temperature: -10℃ - 150℃

  • Pressure rating: 10bar

  • Automatic control unit: Feedback device and locator

  • Drive mode: Pneumatic

  • Automatic control unit: Feedback device and locating device

  • Diaphragm or sealing material: PTFE/EPDM

  • Body material: 316L/1.4404/1.4435

  • Interface form: Welding and clamping

  • Standard: ASME BPE and 3A

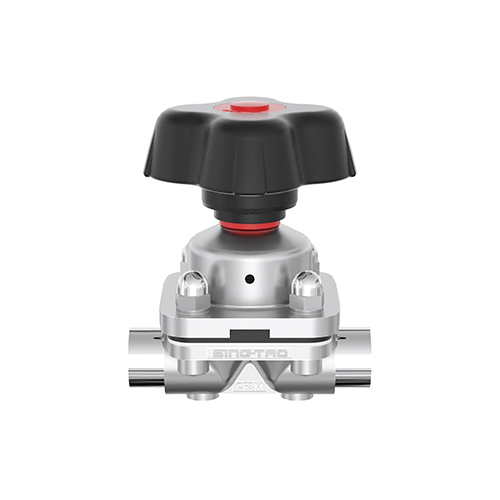

Manual Diaphragm-Valve

Specification:

  • Dimension range: DN10 - DN100（3/8" - 4"）

  • Working temperature: -10℃ - 150℃

  • Pressure rating: 10bar

  • Automatic control unit: Feedback device and locator

  • Drive mode: Manual

  • Diaphragm or sealing material: PTFE/EPDM

  • Body material: 316L/1.4404/1.4435

  • Interface form: Welding and clamping

  • Standards: ASME BPE and 3A

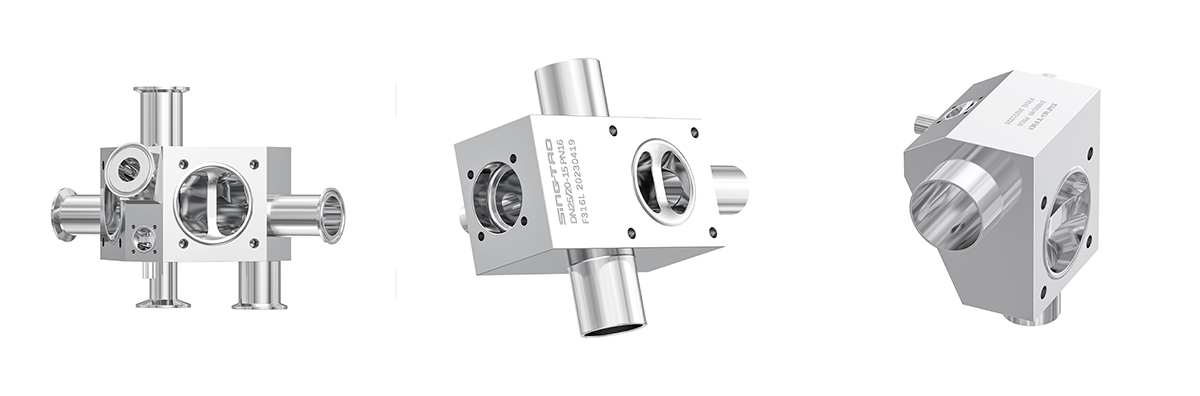

Customized Diaphragm-Valve

The previous large multiple valves and line assemblies are transformed into smaller and more compact diaphragm valves, thereby reducing the process contact surface area, dead area and retention flow. The rapid prototyping process is used to customize and design the valve to specifically meet your process requirements.

Standards: ASME BPE
