Sampling Valve

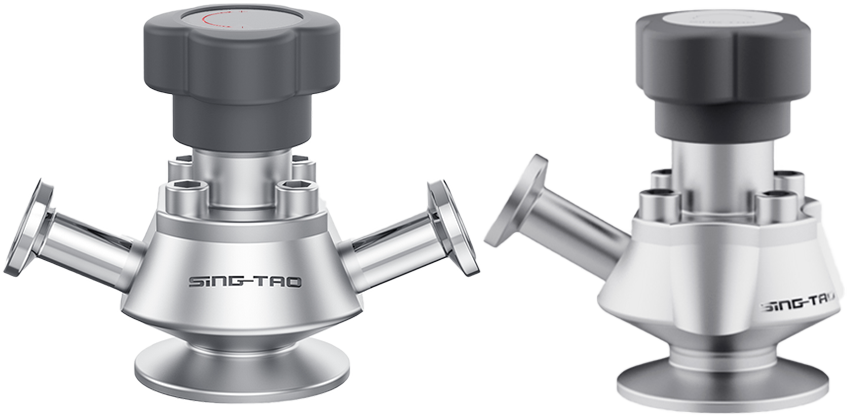

The SingTao sanitary sampling valve is used to extract liquid samples for safety assessment during sanitary and aseptic processes without contaminating the samples or sample sources. The representative samples that accurately reflect product features achieve product control and ensure product safety and quality. The valve is applicable to foods and drinks and biological pharmaceutical industries.

Features

  • Completely drained for side mounting

  • Internal structure with no dead area and no residue design

  • Compact design and easy operation

  • Resistant to high temperature and autoclaved sterilization

  • Applicable to CIP and SIP

Specification

  • Sampleling range: DN15 (1/2")

  • Dimension range: (Outlet)DN20 - DN25 (3/4" - 1")

  • Working temperature: -10℃ - 150℃

  • Pressure rating: 10bar

  • Driving mode: Manual

  • Seat material: PTFE

  • Body material: F316L/1.4404/1.4435

  • Interface form: Elbow pipe, clamp and adapter

  • Standard: ASME BPE and 3A
