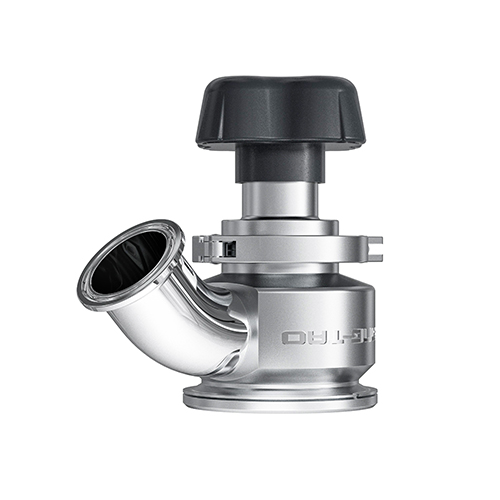

Plunger Tank Bottom Valve

The SingTao plunger tank bottom valve is used at the bottom of the tank or container for discharge or drainage control.

Features

  • Minimum residue in the tank, preventing material aggregation

  • Retention-free design of body and cavity that is easy to discharge materials rapidly

  • Clever structure of body and flap, and smooth flow channel for CIP cleaning

  • Fully sanitary design, including body and flap

  • Resistance to high temperature sterilization treatment

Specification

  • Dimesion range: (Outlet) DN20 - DN65（3/4"~2 1/2"）

  • Working temperature: -10℃ - 150℃

  • Pressure rating: 10bar

  • Driving mode: Manual and pneumatic

  • Body material: 316L

  • Interface form: Clamp

  • Standard: ASME BPE and 3A
