Drain valve

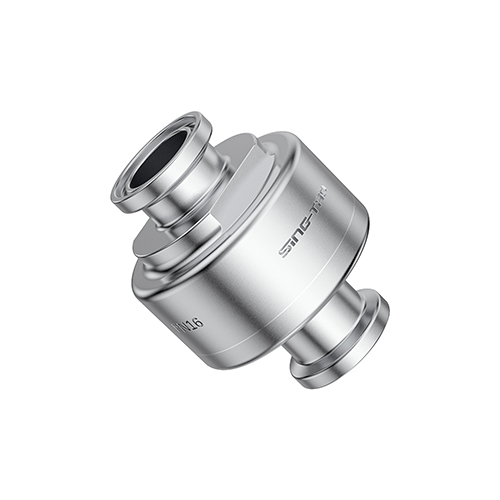

Thermostatic Trap

With bimetallic strip design and high sensitivity to temperature, the SingTao thermostatic trap drains the condensate water in the steam pipeline, so that the steam heating equipment can achieve the maximum efficiency.

The body structure meets sanitary requirements, and has been widely used in the biological pharmacy, aseptic foods, drinks, and other fields.

Features

  • The low undercooling operation reduces the possibility of SIP delays caused by temperature verification failures

  • Simple thermosensitive elements and maximum drainage efficiency

  • Excellent flow rate provided by the new design and thermal water drainage improved by low degree of undercooling

Specification

  • Dimension range: DN15 - DN25（1/2"~1"）

  • Working temperature: 0℃ - 200℃

  • Pressure rating: 16bar

  • Body material: 316L

  • Interface form: Clamp/NPT

  • Standard: ASME BPE and 3A

Download

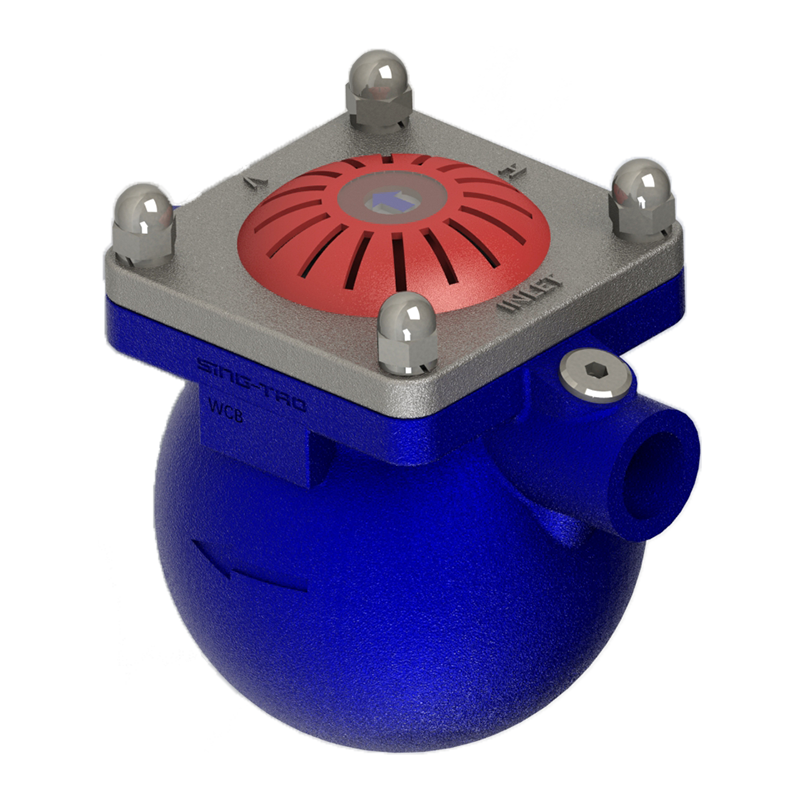

Lever Float Trap

Used for steam pipe system and equipment, the SingTao float trap can automatically discharge the condensed water, air and other non-condensed gas, and prevent water steam leakage.
With no influence from pressure, temperature and condensate flow fluctuation, continuous drainage (drainage of water (if any)) and minimum undercooling degree of 0℃, it enables the steam heating equipment to achieve the best work efficiency.

Features

  • No influence from pressure, temperature and condensate flow fluctuation

  • A seat below the level, forming a water seal, with no steam leakage

  • Minimum working pressure 0.01Mpa, and maximum back pressure rate ≤85%

  • A balanced double seat structure that can achieve small volume and high water discharge

Specification

  • Size range: DN20～DN25

  • Temperature: -10℃~130℃

  • Pressure rating: 10bar

  • Body material: Cast steel/304

  • Interface form: Thread, welding and flange

  • Standards: Comply with DIN, ISO standard and 3A & CE certification
